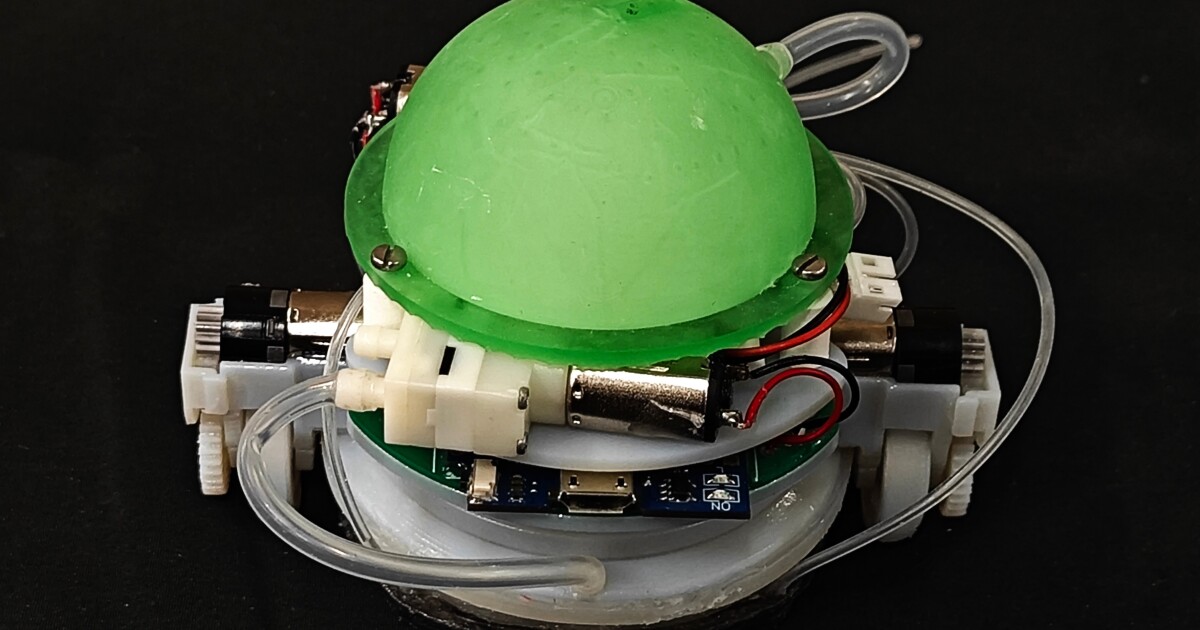

Snails are nice at climbing vertical surfaces, though they’ve only a single moist suction-cup foot. A brand new bio-inspired robotic climbs partitions by mimicking that straightforward but efficient mechanism, though fortunately it leaves a path of water as a substitute of mucus.Often known as the sliding suction robotic (SSR), the proof-of-concept gadget was created by analysis affiliate Tianqi Yue and colleagues on the College of Bristol. The current model weighs simply 96 grams (3.4 oz) and matches comfortably in an individual’s hand, however the expertise might be scaled up as wanted.On the underside of the SSR’s rotunda-shaped physique is a 50-mm (2-in)-wide suction cup. That cup is made primarily of sturdy, versatile polyurethane, though its underside consists of a mix of silicone and a hydrophilic (water-attracting) polymer. A hoop of extremely absorbent foam runs across the perimeter of the suction cup.
An underside view of the SSR because it’s pressed towards a sheet of glass – though the robotic can presently solely adhere to clean surfaces, the addition of a vacuum pump might assist its descendants persist with rougher materialsUniversity of Bristol
The robotic is initially pressed firmly onto a wall by hand. This motion adheres the bot to the wall, however would not enable it to maneuver.To ensure that that to occur, water is pumped from an onboard tank, by way of 4 silicone tubes and into the froth ring. Capillary motion subsequently attracts the water out of the froth and throughout the underside of the suction cup, forming a skinny layer of liquid that each offers lubrication and maintains the seal.Two motorized wheels – one on both facet of the suction cup – are then used to propel the robotic throughout the wall. Though some water is left behind on the wall alongside the SSR’s path, that liquid is repeatedly changed to keep up an efficient layer on the underside of the cup. Snails transfer whereas sustaining suction in a lot the identical manner, though they secrete mucus as a substitute of water.In lab assessments, the bot was in a position to climb vertical sheets of glass and painted steel at speeds of as much as 19 mm (0.75 in) per second, plus it may rotate on the spot and even transfer fully upside-down throughout the underside of horizontal sheets. It was additionally in a position to transport a payload of as much as 200 g (7 oz), and face up to a downward pulling drive of 1 kg (2.2 lb).Primarily based on these assessments, the scientists estimate that the SSR ought to have a real-world runtime of roughly one hour per battery-charge. It is necessary to notice, the robotic would not use any energy to keep up suction when it is not shifting.Potential functions for the SSR embrace the inspection and upkeep of wind turbine blades, ships’ hulls, and the home windows of skyscrapers.”We demonstrated that sliding suction gives low power consumption, excessive adhesion effectivity and security, excessive loading capability and low complexity, whereas solely leaving a quick-to-evaporate water path,” says Tianqi Yue. “Essentially the most thrilling discovering of our analysis it that the proposed sliding suction mechanism is a novel clear climbing technique and can considerably advance the event of the next-generation climbing robots.”A paper on the analysis was just lately revealed within the journal Nature Communications. You’ll be able to see the SSR in motion (in some circumstances utilizing an exterior water provide) within the video beneath.And for one more latest instance of snail-inspired robots, try The Chinese language College of Hong Kong’s robo-snails that cling to 1 one other in an effort to collaboratively carry out outside duties.
Mov. 5.4 – Demonstrations of sensible functions
Supply: College of Bristol through Newswise
