The entire quadrupeds we cowl have inflexible one-piece our bodies, which appears to be a very good shout for many of the antics they rise up to. However a versatile backbone could be higher in sure climbing conditions, and that is the place the KLEIYN robodog may shine.As we have seen from the likes of the ANYmal, Lynx and Go2, quadruped robots with inflexible backs aren’t solely helpful for hauling gear however fairly agile too. However having some flex might be helpful too, if they should squeeze into tight areas akin to climbing up the within of a chimney, for instance.Scientists on the identical College of Tokyo lab that introduced us an anatomically right musculoskeletal robotic, a flying DRAGON and a humanoid chauffeur have launched a robodog with a jointed again to sort out simply such a process, in addition to attacking varied-height terrain – such as you would possibly discover in catastrophe websites – with ease.

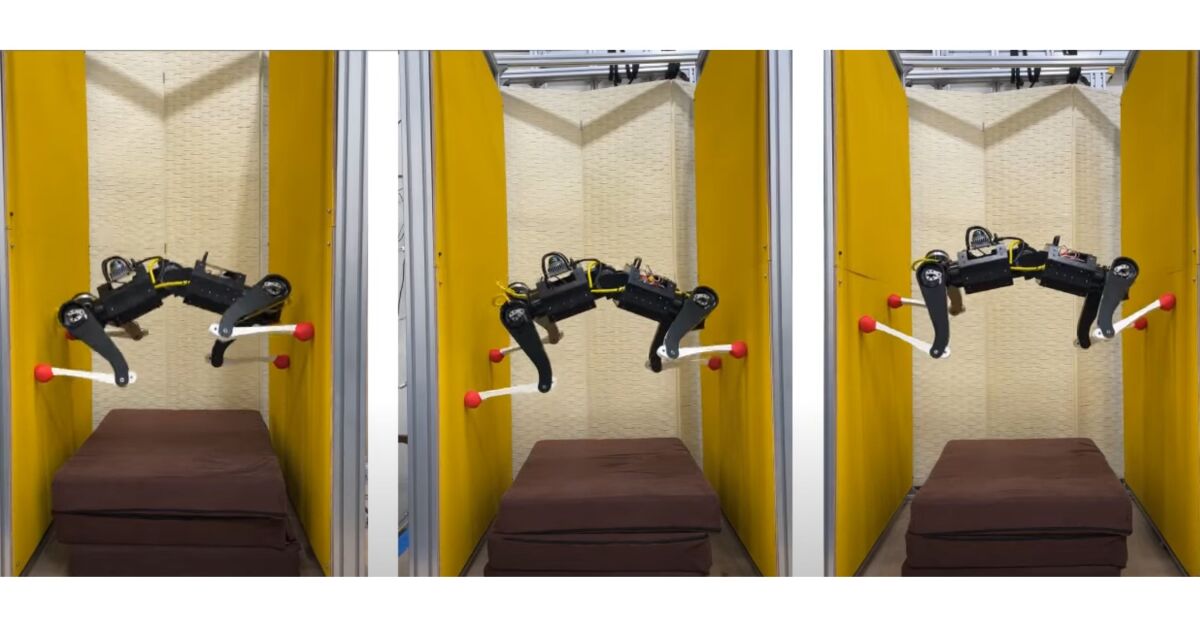

The KLEIYN robodog can sort out varied terrains and climb within the wild tooJSK
That waist joint implies that the again will be arched barely to cut back the physique size of the robotic, or flexed to navigate by advanced environments. Moderately than mount grippers or claws to the ends of the toes to assist KLEIYN grasp uneven vertical surfaces and defy gravity, the JSK staff opted to have the leg joints exert enough strain in opposition to opposing clean partitions to maintain the robotic aloft.Every leg has three levels of freedom plus a pitch-axis joint on the “shoulder” and rear “knee.” All leg joints sport actuators with a 1:10 discount ratio and torque of 25 Nm (18.4 lb.ft). The place each “calf” hyperlinks of robodogs just like the Go2 and Lynx face the identical means, the JSK bot has them going through reverse instructions for higher vertical contact on the pads with out impacting its strolling gait.The waist joint has one diploma of freedom and 1:9 discount ratio gearing on the 40-Nm (29.5-lb.ft) motor. It is connected to similar physique containers wrapped in aluminum that home parts just like the battery and onboard laptop – one to the entrance that is topped by a LiDAR unit with built-in IMU and one other on the again.The researchers employed a novel reinforcement studying platform known as Contact-Guided Curriculum Studying to offer the quadruped the digital expertise wanted to grasp its chimney climbing chops from a standing place. After coaching in digital areas, the staff erected two ply boards to type three units of partitions, every with a unique hole width between them – 800, 900 and 1,000 mm.
Studying to climb in a simulated atmosphere (high) and making use of that to real-world checks (backside)JSK
The quadruped was then despatched a command to climb. Within the case of the 800-mm hole, the robotic managed climb speeds of as much as 170 mm per second, which the staff says is 50x quicker than UCLA’s RoMeLa SiLVIA hexapod – which is reported to scramble up at 3 mm/s. The staff additionally examined common locomotion, tackling stairs and strolling over uneven surfaces.The KLEIYN robodog weighs in a 13 kg (28.6 lb), stands 400 mm (15.7 in) tall, and has a straight physique size of 760 mm (~30 in). Sensible functions for industrial inspections are pretty apparent, however search and rescue operations may additionally profit from this versatile design and digital studying platform.A paper on the challenge is accessible on arXiv. The video beneath has extra.
KLEIYN : A Quadruped Robotic with an Energetic Waist for Wall Climbing (IROS 2025)
Supply: JSK
